ANS MEMS

ANS scanning mirror devices stand unchallenged as the leader in this emerging market. Our mirror designs have been the force driving the market for product innovation in the optical MEMS field. Several Fortune 500 companies have engaged us to integrate our mirrors into their next generation products. Our mirror devices are being produced through a wide range of specifications and in a variety of applications. Our patented designs outperform anything else in the market.

Moreover, you can easily see our absolute commitment to our customers by the fact that we produce the mirror devices locally at a state-of-the-art wafer fabrication facility, which provides quick turn-around times while achieving the highest yields in the industry! And you can be assured that ANS will remain committed to blazing the path to ever more innovative applications, adding to our MEMS scanning mirror line-up in multiple market sectors.

Highlights of ANS Scanning Mirrors Performance:

  • Largest rotation angle (> 110o)
  • Largest mirror size (> 4mm x 3mm)
  • High Scanning Frequency (> 3.4KHz)
  • Ultra-high Scanning Frequency (> 30KHz)
  • Lowest jitter (< 0.003%; averaged 2500 scans)
  • Lowest power consumption (< 2mW)


Our Products





Specification of ANS Scanning Mirrors


Units

AN-1610

AN-4030

AN-4508

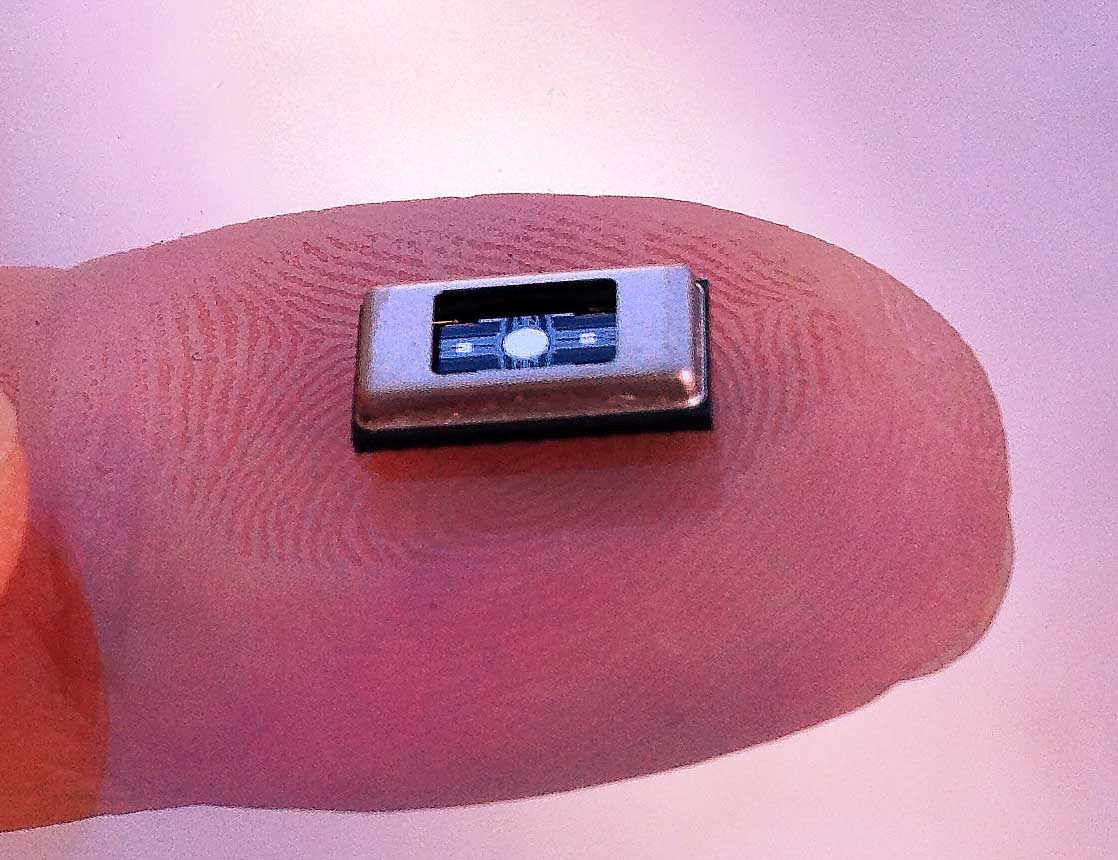

AN-1010

AN-1212

Package Dimension

LxWxH (mm)

8.87x3.08x1.49

17.5x12x5

17.5x12x5

9.7x4.8x2.11

TO-46

Mirror Size

mm

1.6 x 1.0

4.0 x 3.0

4.5 x 0.8

1.0 x 1.0

1.2 x 1.2

Frequency

Hz

700 (Type 1) 1250 (Type 2)

3050

3450

24000 (Fast) DC to 1200 (Slow)

DC driving




Example of Applications


Pico-Projector

The samllest 720p pico projector demo with ANS 2D raster scanning mirror; its thickness is less than 5mm and its volume is less than 1.5CC.

Laser Printer

ANS scanning mirror replaces either the conventional polygon mirror or external coil-magnet mirror assembly.

Touch Screen

ANS scanning mirror is one of the major components, along with IR lasers, photo sensors and digital signal processor.
